Model 81

Industrial grade 3D scanner

Model 81 has a total of 81 blue laser lines, including photogrammetry function mode, using 63 cross blue laser lines for large-range mode, standard mode + 17 parallel blue laser lines for precision mode + 1 blue laser line for deep hole scanning; scanning speed is faster, accuracy is higher, and stability is stronger; this product has been widely used in the fields of 3D detection and reverse engineering, and the operation process is flexible and convenient, suitable for various complex application scenarios.

Back to list

Product features

High precision

Accuracy up to 0.01mm in precision mode

Fast measurement

The number of landmark points is halved
63 laser lines + 1 beam for scanning deep holes + 17 beams for scanning details

Flexible operation

Compact appearance, flexible and portable, easy to operate and easy to carry

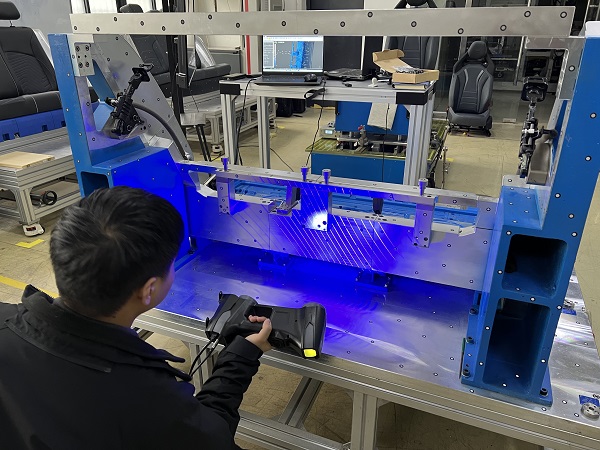

Multiple modes

Single beam scanning of deep hole dead ends
Precision mode scan details
Standard mode wide range scanning

Specification parameters

Measurement Rate

Model	Model 81
Light source	81 blue laser lines (wavelength: 450nm)
Measurement Rate	6,300,000points/s
Scan mode	Wide-Range mode	Standard mode	Precision mode	Deep hole mode
	63 crossed blue laser lines		17 crossed blue laser lines	1 blue laser line
Data precision	0.02mm		0.01mm	0.02mm
Scanning distance	370m		200mm	370mm
Scan depth of field	550mm		200mm	550mm
Resolution	0.01mm(max)
Scanning area	600X550mm(max)
Scanning range	0.1-10m (expandable)
Volume Accuracy (Photogrammetry)	0.02+0.03mm/m
	Accuracy of 0.02+0.015mm/m when integrated with a Global 3D Photogrammetry System
Operating software	HLScan (free lifetime upgrade)
Data formats	asc, stl, ply, obj, igs, wrl, xyz, txt, etc., can be customized
Compatible software	3D Systems (Geomagic Solutions), InnovMetric Software (PolyWorks), Dassault Systemes (CATIA V5 and SolidWorks), PTC (Pro/ENGINEER), Siemens (NX and Solid Edge), Autodesk (Inventor, Alias, 3ds Max, Maya, Softimage) wait
Data transmission	USB 3.0
Computer configuration (optional)	Win10 64-bit; video memory: 4G or above; processor: I7-13700 and above; memory: 64 GB
Laser safety level	ClassⅡ (eye safety)
	Certification number (Laser certificate): LCS200726001DS
Weight	0.92Kg
Dimensions	310x80x139mm
Temperature/ humidity	-10—40℃；10-90%
Power supply	Input:100-240v,50/60Hz,0.9-0.45A；Output:24V,1.5A,36W(max)
Certification	CE、IC、FCC、ROHS、ISO9001
Patent	ZL201220386542.3，ZL201220386546.1，ZL201520174157.6，ZL201721695684.7，ZL201520174106.3，ZL201420058854.0，ZL201721376035.0，ZL201330658475.6，ZL201130007136.2，ZL201130007145.1，ZL201130007141.3，ZL201720362488.1，ZL201720349729.9，ZL201720362493.2，ZL201720369852.7，ZL201720369914.4，ZL201720369921.4，ZL2021102492208.4
Warranty Period	24 months
