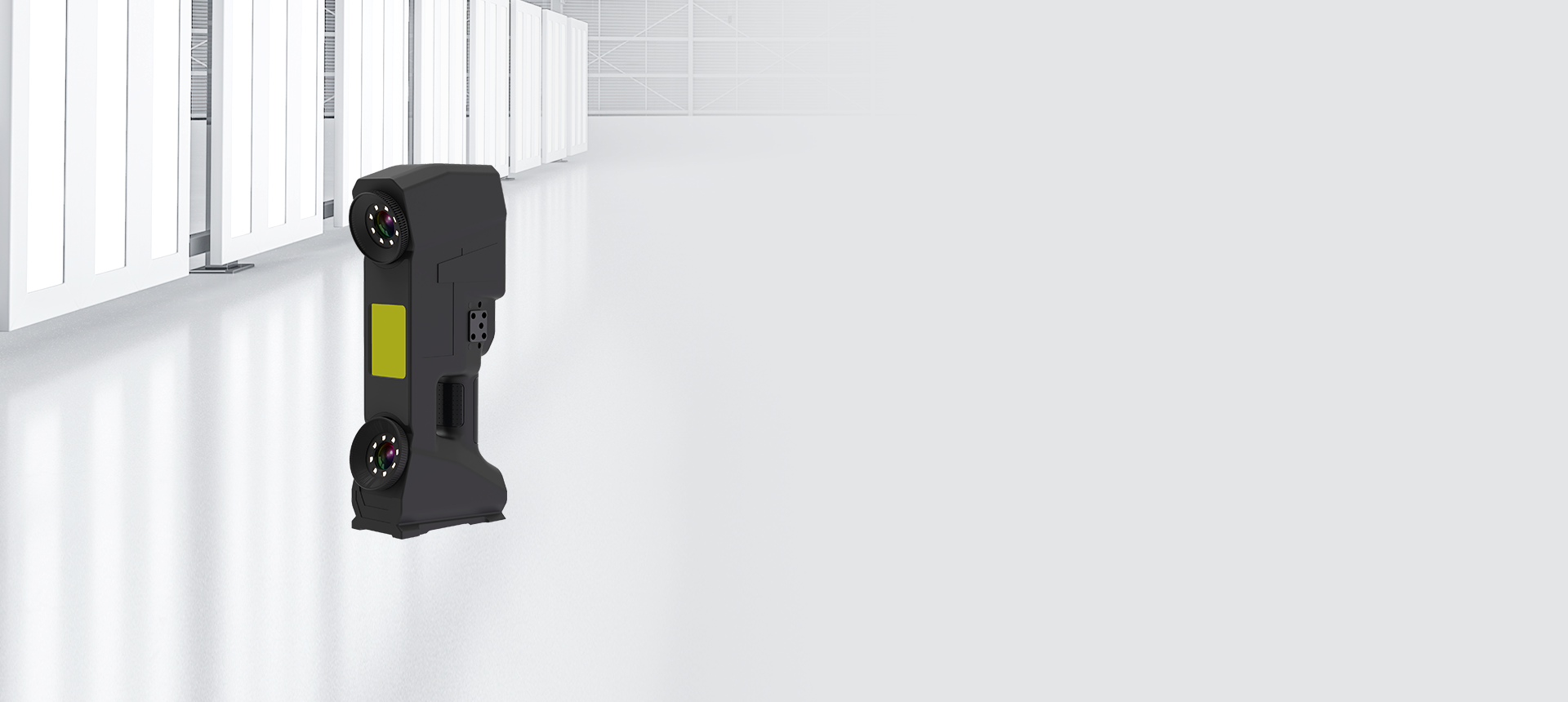

Magic
Magic
Multifunctional Industrial 3D scanner
The country's first exclusive technology, multiple scanning modes, both handheld laser scanning and fixed automatic scanning; it not only achieves the high accuracy of photo-based 3D scanners, but is also compatible with the strong adaptability of handheld 3D scanners to the workpiece surface. ;At the same time, the scanning speed is fast, freeing up manpower and improving efficiency.
Back to list
Product features
Multifunctional scanning
Multifunctional scanning
  • Automatic scanning mode, handheld scanning mode, freely select mode according to workpiece characteristics
Light source form - 49 blue laser lines
Light source form - 49 blue laser lines
  • Scan faster, with higher accuracy and better stability
Various data acquisition methods
Various data acquisition methods
  • Fixed and automatic acquisition of point cloud data, hand-held landmark point splicing to obtain point cloud data
High-precision scanning
High-precision scanning
  • The accuracy is as high as 0.01mm, ultra-finely restoring the subtle features of the object's surface
Specification parameters
MdoelMagic
Scanning methodAuto scan modeHandheld scanning mode
Scan dataAutomatic acquisitionSign point splicing
Light source49 blue laser lines (wavelength: 450nm)
Measurement  Rate4,200,000points/s
Scan modeWide-Range modeStandard modePrecision modeDeep hole mode
34 crossed blue laser lines14 crossed blue laser lines1 blue laser line
Scanning distance650mm330mm650mm
Scan depth of field550mm450mm550mm
Data precision0.02mm
Resolution0.01mm(max)
Scanning area800×600mm（max）
Scanning range0.1-10m (expandable)
Volume precision0.02+0.03mm/m
0.02+0.015mm/m combined with HL-3DP three-dimensional global photogrammetry system (optional)
Operating softwareHLScan (free lifetime upgrade)
Data formatsasc, stl, ply, obj, igs, wrl, xyz, txt, etc., can be customized
Compatible software3D Systems (Geomagic Solutions), InnovMetric Software (PolyWorks), Dassault Systemes (CATIA V5 and SolidWorks), PTC (Pro/ENGINEER), Siemens (NX and Solid Edge), Autodesk (Inventor, Alias, 3ds Max, Maya, Softimage) wait
Data transmissionUSB3.0
Computer configuration (optional)Win10 64-bit; video memory: 4G or above; processor: I7-13700 and above; memory: 64 GB
Laser safety levelClassⅡ (eye safety)
Certification number (Laser certificate): LCS200726001DS
Weight0.92kg
Size290x125x70mm
Temperature/ humidity-10—40℃；10-90%
Power supplyInput:100-240v,50/60Hz,0.9-0.45A；Output:24V,1.5A,36W(max)
CertificationCE、IC、FCC、ROHS、ISO9001
PatentZL201220386542.3，ZL201220386546.1，ZL201520174157.6，ZL201721695684.7，ZL201520174106.3，ZL201420058854.0，ZL201721376035.0，ZL201330658475.6，ZL201130007136.2，ZL201130007145.1，ZL201130007141.3，ZL201720362488.1，ZL201720349729.9，ZL201720362493.2，ZL201720369852.7，ZL201720369914.4，ZL201720369921.4，ZL2021102492208.4。
Warranty Period24 months


High-precision scanning
The accuracy is as high as 0.01mm, ultra-finely restoring the fine features of the surface of the scanned object.
