Three-Dimensional Inspection Case of Fan Blade
A fan blade manufacturer in Chengdu needs to do three-dimensional data quality testing for fan blades. Because of the core components of fan blade components, the quality control of fan blades during production is very high. In order to test whether the finished products meet the standards, Huaguang Engineer uses hand-held three-dimensional laser scanner 3DH-3M to scan fan blades. Contrastive analysis of three-dimensional detection.
Practical problems
1. Customers require that the blades of the fan be scanned quickly and accurately, and that the overall error value of the scanned data be small.
2. The curvature of fan blade surface varies greatly, and there are many curves on the surface. Traditional measuring tools can not measure the curvature data of fan blade surface.
Co3d solutions
There will be errors in the process of fan blade production. Because of the traditional measurement methods, the data obtained are limited and can not accurately measure the three-dimensional data of fan blade surface. Huaguang three-dimensional technical engineer: use hand-held three-dimensional scanner 3DH-3M to quickly scan and obtain the three-dimensional data of fan blade. The scanning accuracy is high, the speed is fast, the operation is convenient and the time-consuming is short, so as to reach customers. Scanning requirements, successfully solve the problems faced by customers.

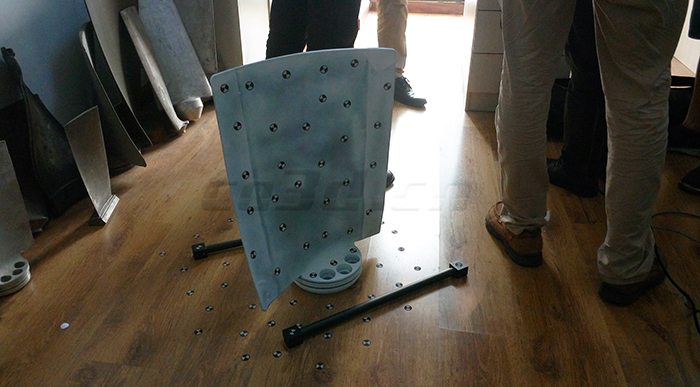

Physical Drawing of Fan Blade

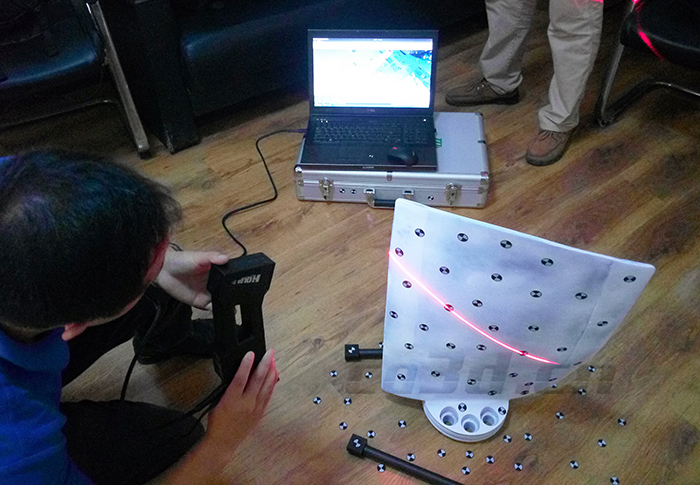

Scanning Chart of Fan Blade on Site

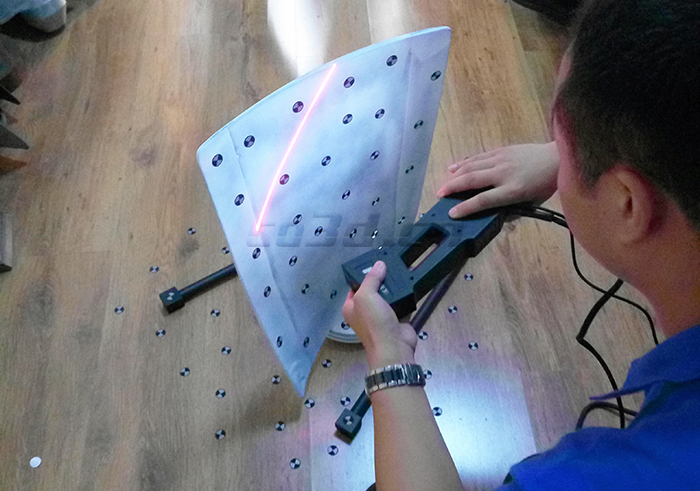

Scanning Chart of Fan Blade on Site

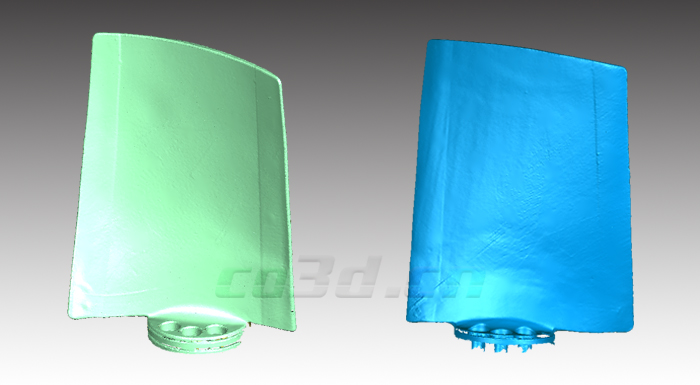

Three-dimensional Detection of Fan Blades

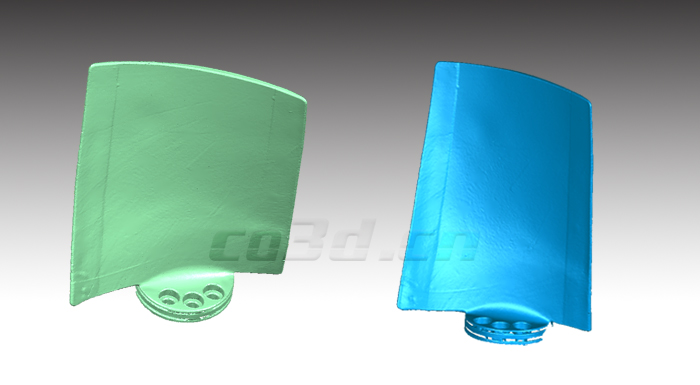

Three-dimensional Detection of Fan Blades
