The use of modern mobile phones is high, the system software is constantly being upgraded, and the speed of mobile phone replacement is very fast, but not only the upgrade of the internal system is required, but the appearance is also very important. A brand of mobile phone manufacturers need to scan the phone for the appearance data and reverse design. Can be used for the next model of the mobile phone to rationalize the design upgrade, data comparison analysis, increase the customer the attraction to improve the company's competitiveness in the market.

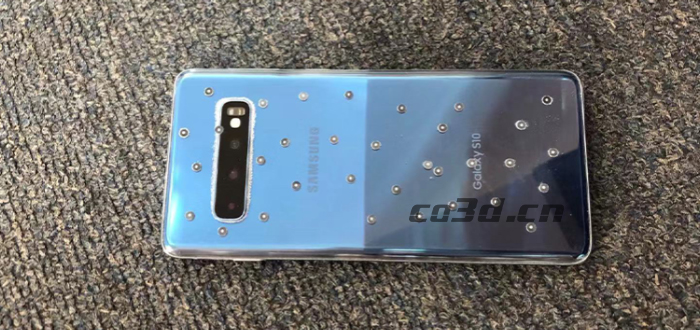

Mobile phone real shot
Practical problems
The phone is small in size, the screen is curved, curved, and smooth and easy to reflect. The overall important small details are many, need to be accurately scanned out, have a great impact on the use of certain functions of the mobile phone, scanning is difficult.
Customers are required to quickly obtain high-precision data from mobile phones, which can speed up the next step. The traditional scanning method is adopted, and the time is long, and the detail scanning is difficult, and the customer's requirements cannot be quickly met.

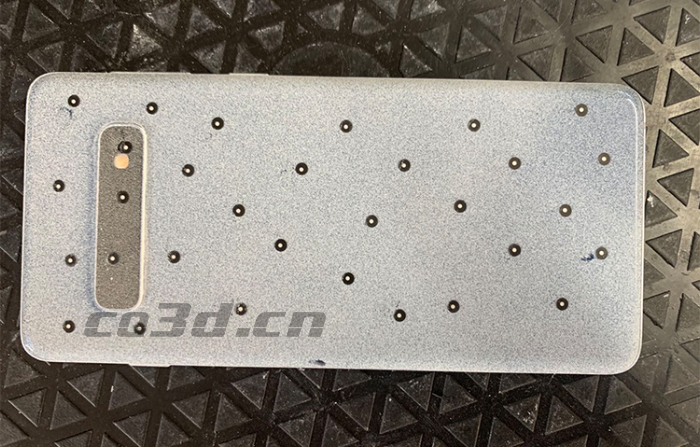

Mobile phone powder spray map
solutions
Comprehensive consideration of various factors, using new measurement methods to solve the problems. Using the camera-type 3D scanner HL-3DS, after the powder-spraying process on the smooth reflective screen, the whole three-dimensional data of the mobile phone is quickly scanned, and the scanning speed of the device is extremely fast, the efficiency is extremely high, and the data precision is high. Through the data import reverse design software Geomagic Studio, the 3D model of the mobile phone STL format is obtained, and the mobile phone 3D data is imported into the reverse modeling software (Pro/E, UG) for reverse modeling. The obtained data can be used in post-design, improvement, and inspection for comparative analysis. The whole scanning process is very satisfactory to the customer. The scanner is fast, the detail processing effect is good, the data precision is high, the operation is simple and portable, it is convenient, the work efficiency is improved and the customer provides an accurate data reference scheme.

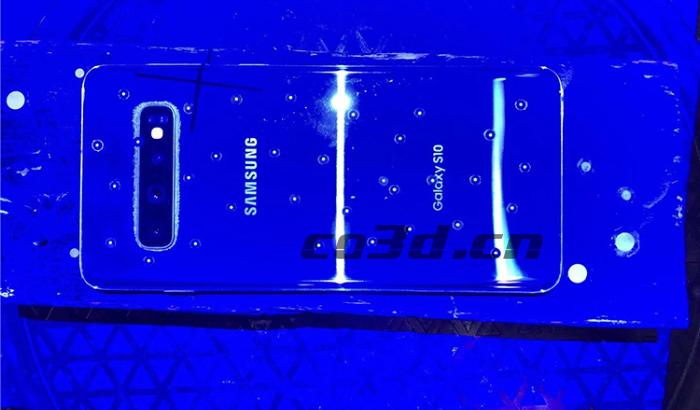

Mobile phone scanning scene map

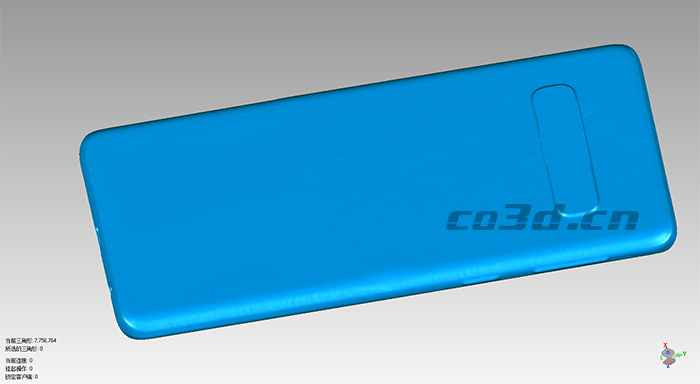

Mobile phone STL data graph

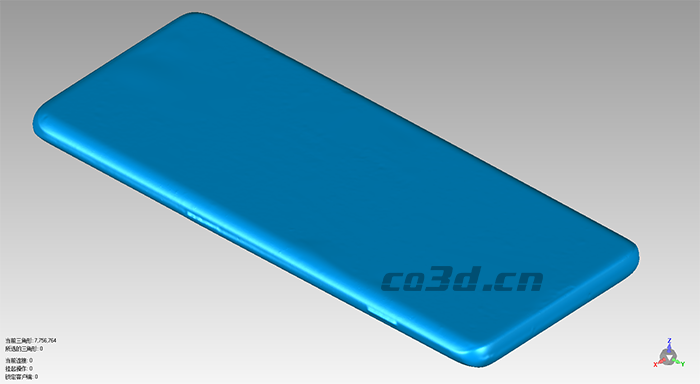

Mobile phone STL data graph
