客戶是一家生產及銷售為一體的知名泵生產企業，客戶需要對水泵葉輪進行質量檢測，為了迎合市場需求提高企業競爭力客戶決定摒棄傳統的檢測方法，引進新型測量手段，客戶慕名而來特邀我司進行產品演示，快速精確的獲取詳盡三維檢測結果，分析產品是否合格，提高產品質量及產品開發率。

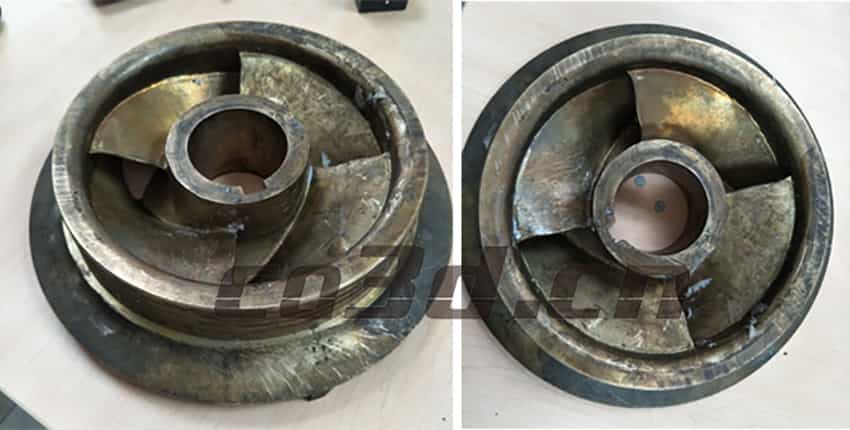

Actual picture of water pump impeller on site
1. The water pump impeller is small in size and has dark black and metallic reflective surfaces in parts of its surface, making it more difficult to scan. The product is prone to deformation during the production process, so the quality control of the water pump impeller is particularly important, and customers require very high precision.
2. Simply using traditional detection methods (such as inspection tools, jigs, three-dimensional coordinates, etc.) is difficult and time-consuming. The process is cumbersome and time-consuming, and it is not easy to accurately and quickly measure structures such as the curvature of the water pump surface. detection.

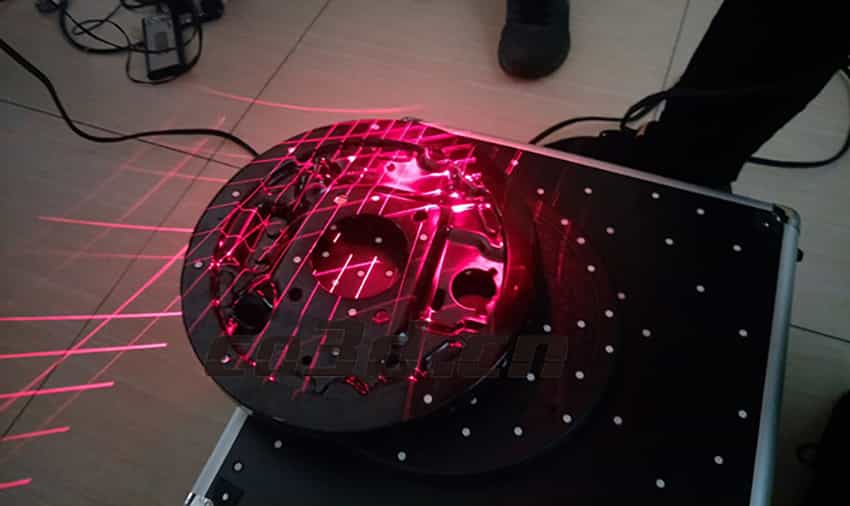

Water pump impeller scanning site picture
The water pump impeller is small in size and has a large curvature on the impeller surface. The surface of the impeller is dark black and has a metallic reflective surface, making it difficult to scan. The customer requires fast scanning speed and very high accuracy. Our peers use traditional detection methods for measurement, which not only requires spraying of developer , and the scanning speed is slow, the workflow is complex, and it takes a long time to scan the workpiece. Many dimensions and shape features cannot be effectively measured, which easily produces secondary errors and affects the production quality and production efficiency of the product.
In response to the problems faced by customers, HOLON 3D technical engineers used thehandheld 3D scanner Model 37 to quickly and accurately obtain the 3D data of the impeller. The scanning is convenient and quick without spraying developer, and the scanning speed is fast and the measurement accuracy is high. Successfully solved the problems faced by customers.
Applicable fields:
Automobile scanning and parts, aircraft parts, ships, large blades, large castings, mold impellers, engineering machinery, 3D printing, scientific research and teaching, etc.
Features:
● Light source form: 22+14+1, 37 in total, making scanning faster, more accurate and more stable.
●Single beam laser: can be switched to single laser scanning mode, suitable for scanning deep holes and dead corners
●Measurement accuracy: up to 0.020mm, resolution up to 0.010mm, not affected by the environment, workpiece structure and user capabilities
● Industrial design: light weight (0.92kg), easy to carry, easy to operate, greatly improves work efficiency, and new independent research and development technology is guaranteed
● Three-dimensional photogrammetry function: The system comes with photogrammetry function, which makes the scanning accuracy higher and the technical level is better than that of the same industry.
● Mobile scanning: can be carried with you, can be used indoors and on-site, and is suitable for various complex scenes
Water pump impeller STL data chart

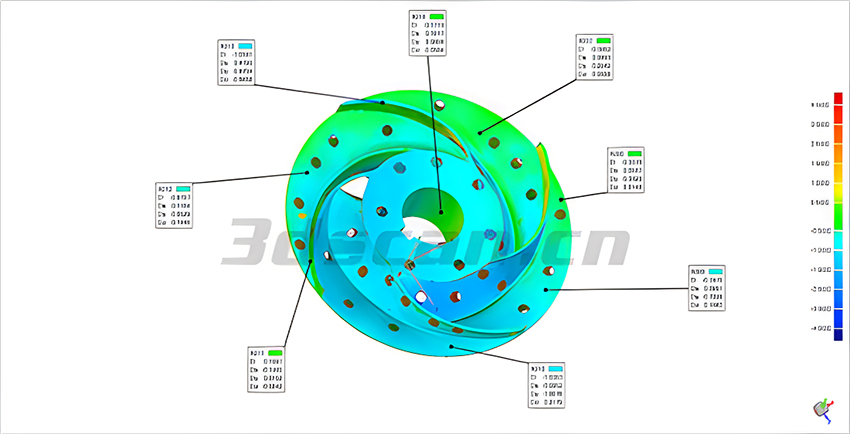

Comparative analysis chart of water pump impeller
2D cross-section view of water pump impeller
