A well-known enterprise in Shenzhen needs to obtain three-dimensional data of the appearance of the robot base, and design the protective cover of the robot base. The technicians of our company are invited to perform three-dimensional scanning on the robot base and take high-precision three-dimensional data to provide the design of the robot base protection cover. Effective data support.
Practical problems
The base of the robot has a complex shape with different surface contours and many holes. The customer's requirements for the appearance data and hole position of the robot base are very high. The traditional measurement method is very cumbersome and time consuming, and it is not easy to accurately and quickly measure and detect the overall structure of the robot base. Holes and angles may lead to The amount of 3D data acquired is incomplete and the accuracy cannot meet the customer's requirements.
solutions
Due to the complex contour of the robot base surface and the large number of holes, the customer has very high precision requirements. Huaguang 3D technical engineer proposed a solution: using the 3D scanner 3DS+ fast scan to obtain 3D data of the robot base, which is fast, easy to operate, short in time and extremely high in data accuracy, meeting customer scanning needs and successfully solving customers. The problem facing.

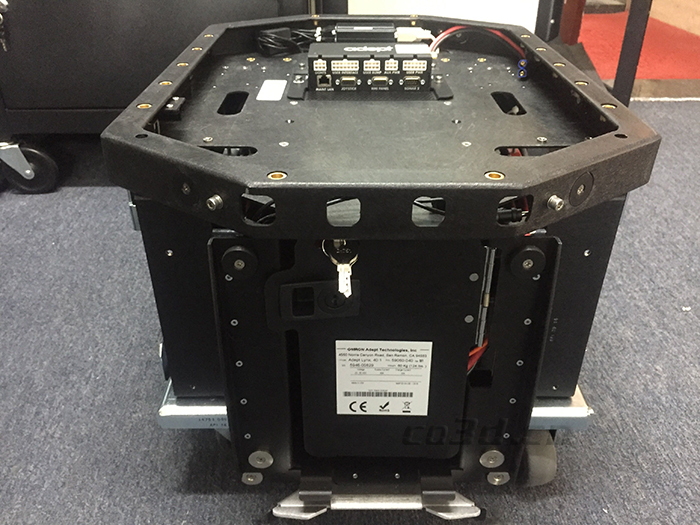

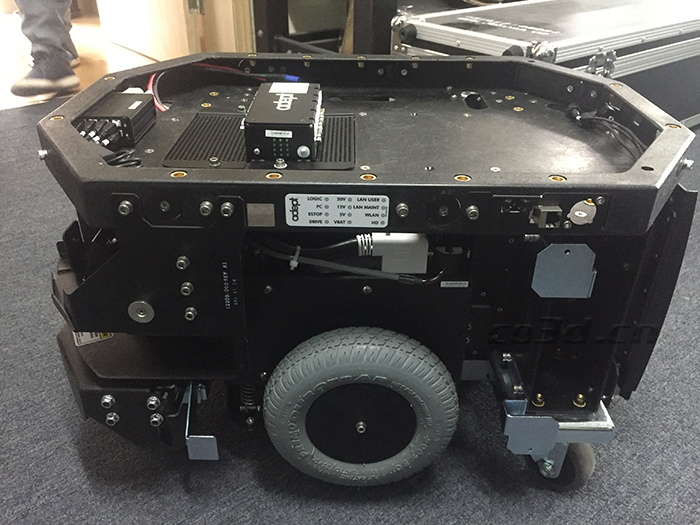

Robot base physical map
Robot base physical map

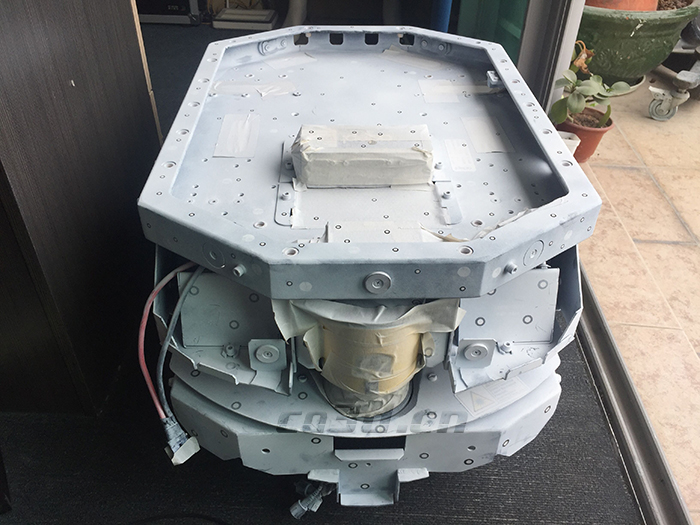

Robot base scan preparation work

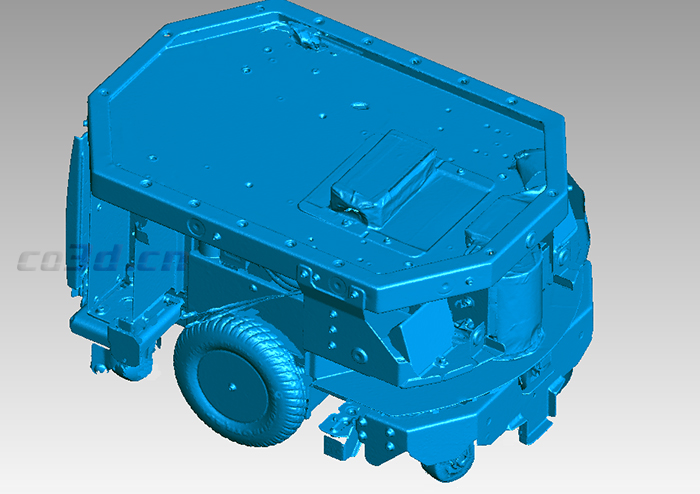

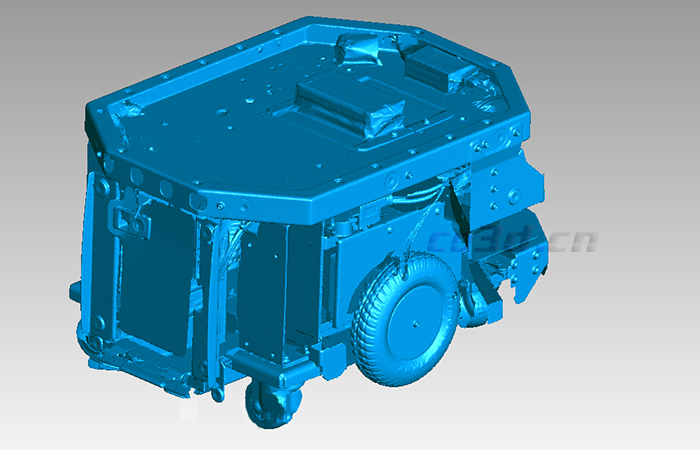

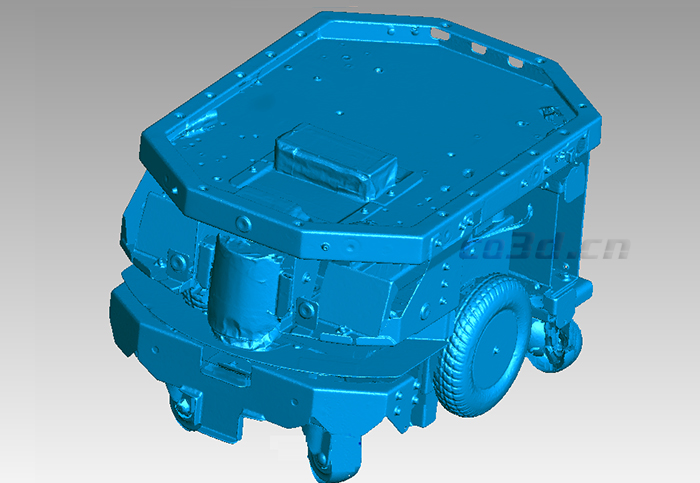

Robot base STL data chart
Robot base STL data chart
Robot base STL data chart

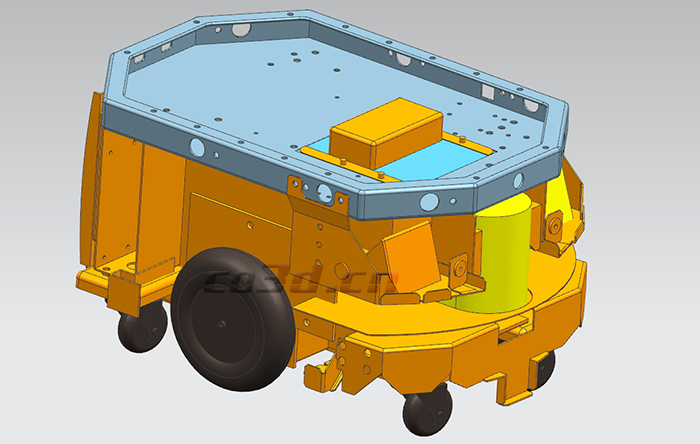

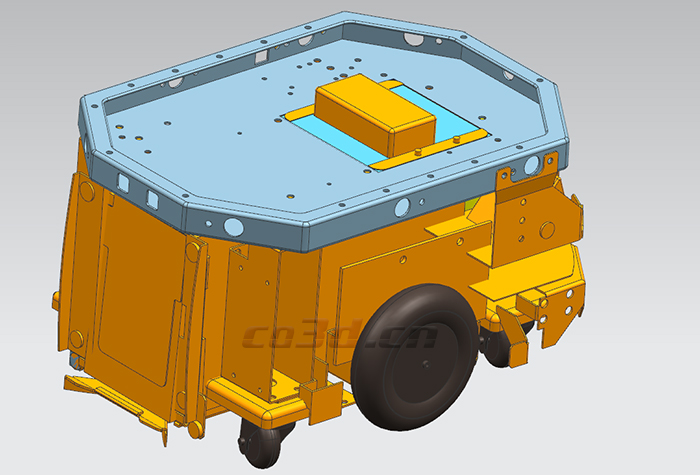

Robot base 3D data map
Robot base 3D data map
