A well-known domestic China Railway Group needs to conduct three-dimensional inspection of the cast steel membrane of high-speed railway sleeper rails. High-speed railway sleeper rails are a very important part of railway construction. It is not only related to the normal use of the railway but also to our life safety. Therefore, the quality of high-speed railway sleeper rails Whether it can meet the standards is particularly important.
1. The cast steel membrane of the high-speed railway sleeper rail is large and bulky, and has many contours and irregular shapes that are difficult to detect. It is necessary to measure whether the cast steel membrane of the high-speed railway sleeper rail matches the hole installation.
2. The high-speed railway sleeper rail cast steel membrane has many dead spots, which increases the difficulty of scanning. The customer needs to quickly scan the high-speed railway sleeper rail cast steel membrane. The scanning data requires very high accuracy, which is used to compare with the original digital model for three-dimensional detection and analysis.
The cast steel film of high-speed railway sleeper rails is large and bulky, with many contours, irregular shapes and hole installation. HOLON 3D technical engineers proposed a solution: use the camera-type 3D scanner HL-3DS+ to quickly scan and obtain the high-speed railway sleeper rails. Based on the three-dimensional data, the scanning process is not only fast, high-precision, easy to operate, but also time-consuming. It meets the scanning needs of customers and successfully solves the problems faced by customers.
High-speed railway sleeper rail cast steel membrane renderings
High-speed railway sleeper rail cast steel membrane scanning site picture
High-speed railway sleeper rail cast steel membrane scanning site picture

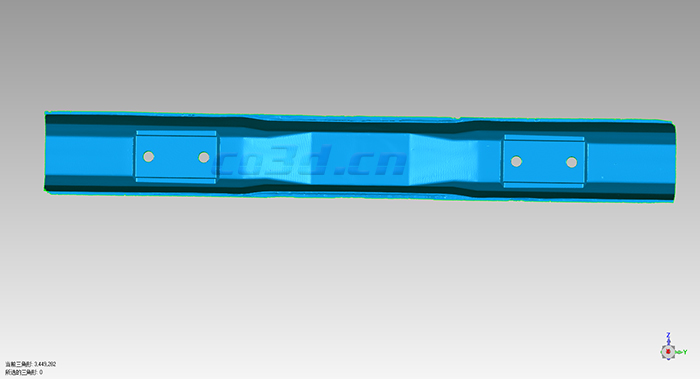

High-speed railway sleeper rail cast steel membrane STL data chart

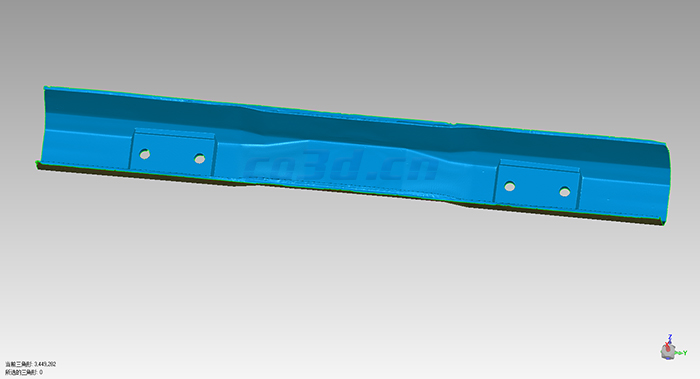

High-speed railway sleeper rail cast steel membrane STL data chart

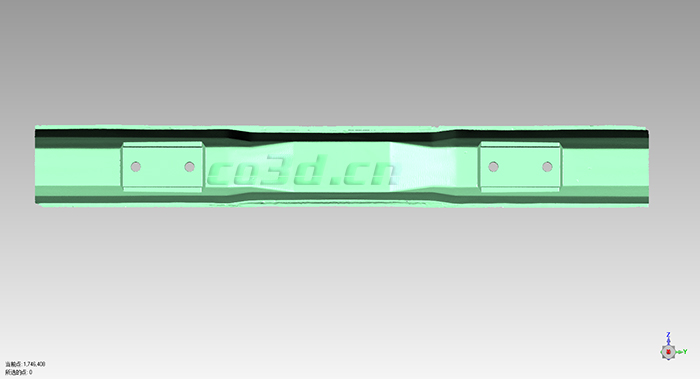

High-speed railway sleeper rail cast steel membrane point cloud data map
